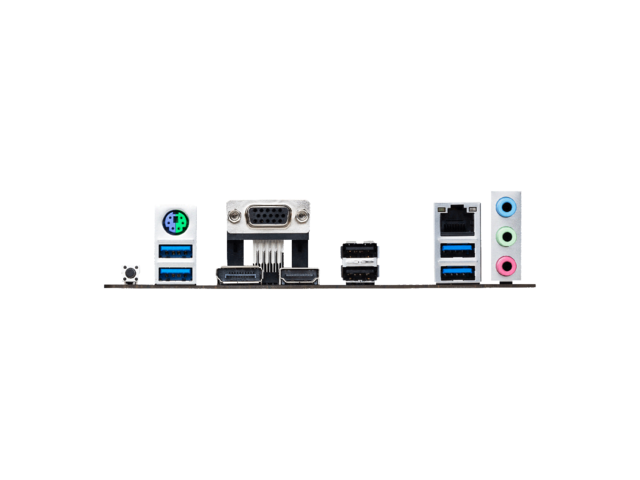

Интерфейси:
-
4x USB 3.2 Gen 1 ports (4 x Type-A)
-
2x USB 2.0 ports (2 x Type-A)
-
1x BIOS FlashBack™ button
-
1x DisplayPort
-
1x HDMI port
-
1x D-Sub
-
1x Realtek 1Gb Ethernet port
-
3x Audio jacks
-
1x PS/2 Keyboard/Mouse combo port
Конектори:
- Fan and cooling related
- 1 x 4-pin CPU Fan header
- 2 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- Storage related
- 1 x M.2 slot (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Други:
- 2 x AURA Addressable Gen 2 header
- 2 x AURA RGB headers
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x S/PDIF Out header
- 1 x Speaker header
- 1 x SPI TPM header (14-1pin)
- 1 x 10-1 pin System Panel header
Слотове за разширение:
- AMD Ryzen™ 5000 / 5000 G-/ 4000 G-/ 3000 Процесори: 1 x PCIe 3.0 x16 slot (supports x16 mode)
- AMD A520 Chipset: 2 x PCIe 3.0 x1 slots
Съхранение:
- Поддържа 1 x M.2 slot and 4 x SATA 6Gb/s портове
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
- M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
AMD A520 Chipset
- 4 x SATA 6Gb/s ports
- Support RAID 0, 1, 10
Памет:
- Максимален размер на паметта: 128GB 4866 (OC) / 4800 (OC) / 4600 (OC) / 4466 (OC) / 4400 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3333 (OC) / 3200/3000/2800/2666/2400/2133 MHz, небуферирана памет
- Двуканална архитектура на паметта
