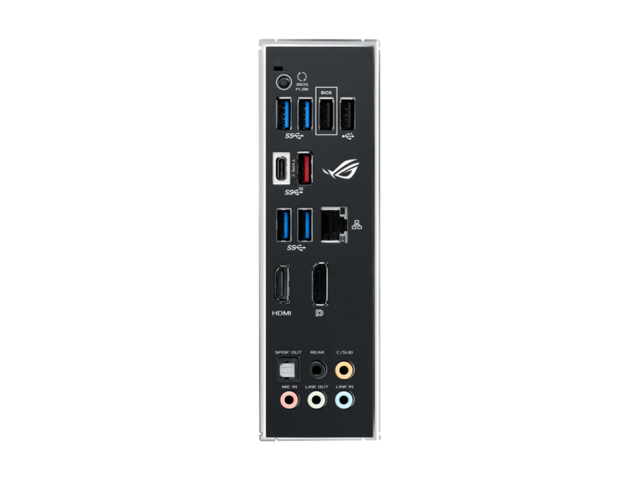

Интерфейси:
- 1 x DisplayPort
- 1 x HDMI порт
- 4 x USB 3.2 Gen 1 (blue) Type-A
- 2 x USB 3.2 Gen 2 (1x Type-A+ 1x USB Type-C)
- 2 x USB 2.0
- 1 x Optical S/PDIF out
- 5 x Gold-plated аудио жака
- 1 x BIOS FlashBack™ Button(s)
Слотове за разширение:
- AMD Ryzen™ 5000 Series/ 3000 Series Процесори:
AMD B550 Chipset
1 x PCIe 3.0 x16 (x4 mode) *
3 x PCIe 3.0 x1
1 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 4.0 x16 (x16 mode)
Конектори:
- 1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
- 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
- 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
- 1 x Thunderbolt header(s)
- 1 x CPU Fan connector(s)
- 1 x CPU OPT Fan connector(s)
- 3 x Chassis Fan connector(s)
- 1 x AIO_PUMP connector
- 1 x AAFP connector
- 2 x Aura RGB Strip Header(s)
- 1 x Addressable Gen 2 header(s)
- 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
- 6 x SATA 6Gb/s connector(s)
- 1 x 24-pin EATX Power connector(s)
- 1 x 8-pin ATX 12V Power connector(s)
- 1 x 4-pin ATX 12V Power connector(s)
- 1 x System panel(s)
- 1 x Thermal sensor connector(s)
- 1 x Clear CMOS jumper(s)
Съхранение:
Общо поддържани: 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports:
- 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
AMD B550 Chipset :
- 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*
- 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
- 6 x SATA 6Gb/s port(s)
- Support Raid 0, 1, 10
Памет:
- AMD RyzenTM 4000 G-Series процесори:
- 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz небуферирана памет
- 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz небуферирана памет
- Двуканална архитектура на паметта
- OptiMem II
- ECC Memory (ECC mode) поддържа в зависимост от CPU
