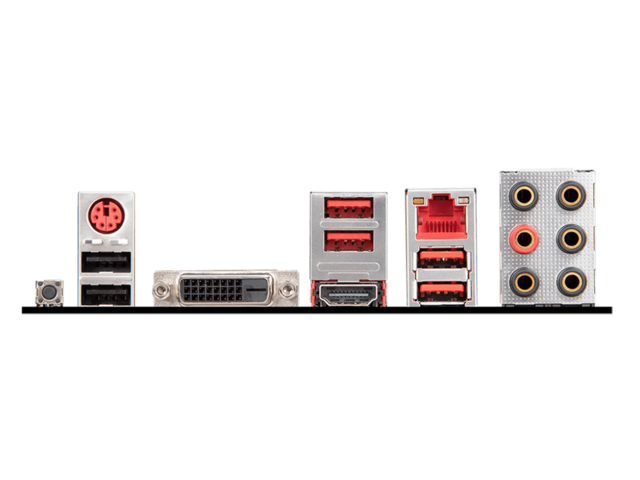

Интерфейси:

• 1 х PS/2 комбо порт
• 2 х USB 3.1 Gen1
• 1 х LAN Port
• 6 х HD аудио конектори
• BIOS Flashback Button
• 2 х USB 2.0 Port
• DVI-D Port
• HDMI Port
• 2 х USB 3.1 Gen2

Слотове за разширение:

Конектори:

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 6 x SATA 6Gb/s connectors
• 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
• 1 x USB 3.1 Gen1 connectors (support additional 2 USB 3.1 Gen1 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin water-pump-fan connector
• 4 x 4-pin system fan connectors
• 1 x TPM module connector
• 1 x Front panel audio connector
• 2 x System panel connectors
• 1 x Serial port connector
• 1 x Parallel port connector
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper
• 2 x 5050 RGB LED strip 12V connectors

Съхранение:

AMD CPU:

• 2 x SATA 6Gb/s порта
• 1 x M.2порта (Key M)
  • Поддържа PCIe 3.0 x4 и SATA 6Gb/s 2242/ 2260 /2280/ 22110 дискови устройства

AMD B450 Chipset:

• 4 x SATA 6Gb/s порта
  • SATA5 и SATA6 портовете ще бъдат недостъпни, когато има инсталирано M.2 устройство в M.2 слота.
